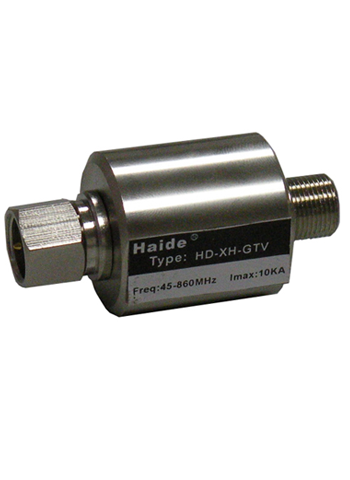

Television line lightning arrester HD-XH-GTV

Online Inquiry
Click Refresh Verification Code

Details

Television line lightning arrester

TV trunk surge protector is suitable for lightning and surge protection of CATV system equipment such as cable TV signal lines, TVs, and TV amplifiers,and so on . It has wide range of applicable frequency, large discharge leakage current, double protections of overvoltage and voltage limiting. RCA interface or F interface, installation and maintenance is very convenient, the highest flow capacity can be up to 10KA, insertion loss of less than 0.2dB, data transfer rate <860M.


Model

HD-XH-GTV

Working frequency

45~860 MHz

Nominal discharge current In (8/20ms)

5KA

Maximum discharge current Imax (8/20ms)

10KA

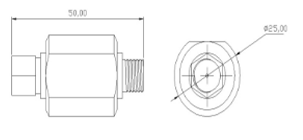

External dimension

50*25*25mm

Response time Ta

≤100ns

Working temperature range Tup

-40℃至+70℃

Insertion loss

≤0.2dB

Input-output impendence

              75W

Degrees of protection

IP30

Enclosure material

Shielded metallic aluminum

Interface mode

CATV/F port of the Metrix system

Applied range

cable television line

Installation method：

Put an arrester in series at the leading end of the line interface of the protected equipment.”O(jiān)UT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance≤4Ω)
