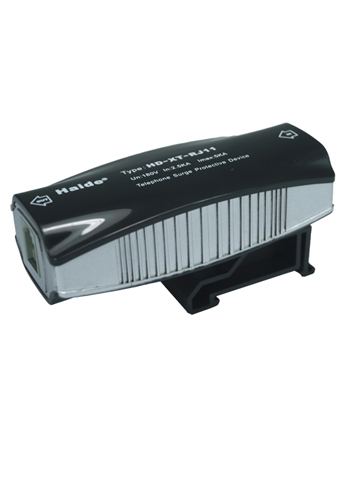

New communication line lightning arrester HD-XT-RJ11

Online Inquiry
Click Refresh Verification Code

Details

This product has very low output residual voltage and it can ensure the quick response time.The interface mode has the choices of RJ11,RJ45 and connection terminal,and so on.It is typically applied to telephone,ADSL,DDN,ISDN,fax machine,modem and SPC exchange.



MODEL

HD-XT-RJ11

Nominal working voltage Un

180V

Maximum continuous working voltage Uc

200V

Nominal discharge current In （8/20μs）

2.5KA

Maximum discharging current Imax（8/20μs）

5KA

Voltage protection level Up

（X-X）

400V

（X-G）

400V

Response time Ta

≤1ns

Insertion loss

≤0.2dB

Series impedance R

4Ω

Data transmission rate

2Mbps

Protection grade

IP20

Sheathing material

Shielding plastic fire-proof box

Operating temperature range Tup

-40℃至+70℃

Interface mode

RJ11

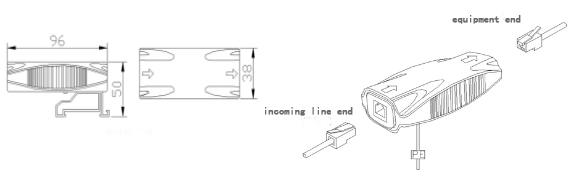

External dimension

96*50*38mm


Installation method：

Put an arrester in series at the leading end of the line interface of the protected equipment.”O(jiān)UT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance≤4Ω)
