RJ11 Communication line lightning arrester HD-XT-RJ11

Online Inquiry
Click Refresh Verification Code

Details

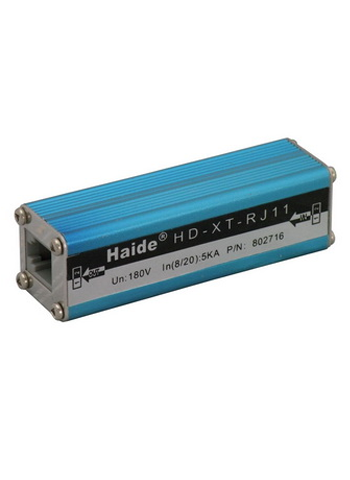

RJ11 Communication line lightning arrester

This product has very low output residual voltage and it can ensure the quick response time.The interface mode has the choices of RJ11,RJ45 and connection terminal,and so on.

It is typically applied to telephone,ADSL,DDN,ISDN,fax machine,modem and SPC exchange.




MODEL

HD-XT-RJ11

Nominal working voltage Un

180V

Maximum continuous working voltage Uc

200V

Nominal discharge current In（8/20μs）

2.5KA

Maximum discharging current Imax（8/20μs）

5KA

Voltage protection level Up

（X-X）

400V

（X-G）

400V

Response time Ta

≤1ns

Insertion loss

≤0.2dB

Series impedance R

4Ω

Data transmission rate

2Mbps

Protection grade

IP20

Sheathing material

Shielding metallic aluminum

Operating temperature range Tup

-40℃至+70℃

Interface mode

RJ11

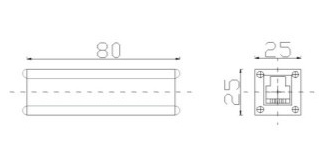

External dimension

80*25*25mm
