Surge protection device for POE network HD-CCTV-POE

Online Inquiry
Click Refresh Verification Code

Details

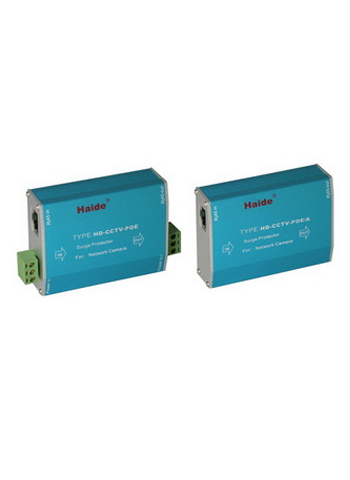

POE network video surge protector

This product can respectively carry out surge protection of the power supply and video lines of a camera,the enclosure adopts an integral aluminum alloy structure.This product has a small volume and very low output residual voltage.Its design is fully considered that the attenuation of data signal transmission between the device inter-electrode capacitance and distributed capacitance. It also has low insertion loss and the data transmission rate can up to 100Mbit/s that can fully meet the video signal transmission requirements and has the advantage of quick response to transient overvoltage.


Model

HD-CCTV-POE

Based on IEC61643-11/IEC61643-21，SPD

III/T3

C2/D1

Protective line

Power line

Network line

Nominal working voltage Un

12V

24V

220V

12V

Maximum continuous working voltage Uc

16V

32V

275V

16V

Nominal discharge current In （8/20μs）

5KA

2.5KA

Maximum discharging current Imax（8/20μs）

10KA

5KA

Voltage protection level Up

55V

160V

1.1KV

X-X：75V

X-G：400V

Rated load current IL

1A


Drain current

＜5μA


Response time Ta

＜25ns

＜1ns

Insertion loss


≤0.2dB

Insertion resistance


1Ω

Bandwidth FG


100M

Protection grade

IP30

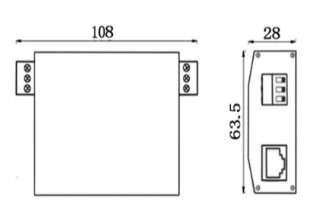

External dimension

108*63.5*28mm

Sheathing material

Shielding metallic aluminum

Operating temperature range Tup

-40℃to+70℃

Interface mode

Terminal

RJ45

Number of guard wire

Terminal

1,2,3,6 wire


Installation method:

Put an arrester in series at the leading end of the interface of lines of the protected equipment.”O(jiān)UT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance≤4Ω)
