Details

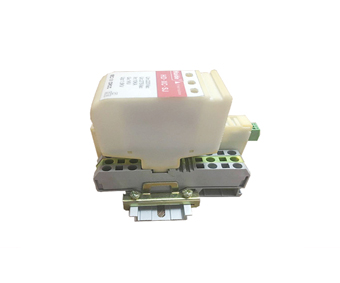

Surge protector for rail transit

This series of products is suitable for the surge protection device on the transmission line side of data communication line, telemetry and remote signal line in the control system. It adopts plug-in structure and has test port. The lightning protection component can be tested separately, with fault indication and deterioration automatic. Tripping, error-proof insertion identification, optional wireless alarm interface for remote monitoring, each surge protector can protect a pair of signal transmission lines.



Model

  HD-XC-10/48MG

  HD-XC-10/60MG

  HD-XC-10/110MG

  HD-XC-10/220MG

  HD-XC-10/380MG

Rated operating voltage Uo

DC 48V

DC 60V

DC 110V

DC 220V

DC 380V

Maximum continuous working voltage Uc

DC 60V

DC 75V

DC 130V

DC 275V

DC 385V

Nominal impact current In （8/20μs）

10KA

Response time Ta

25ns

Sheathing protection level

IP20

Working temperature range

-40℃~+80℃

Working humidity range

5%~96%

Mode of connection

parallel

External dimension

86*88*30mm

Remote signal alarm

wire/wireless
